Grinders

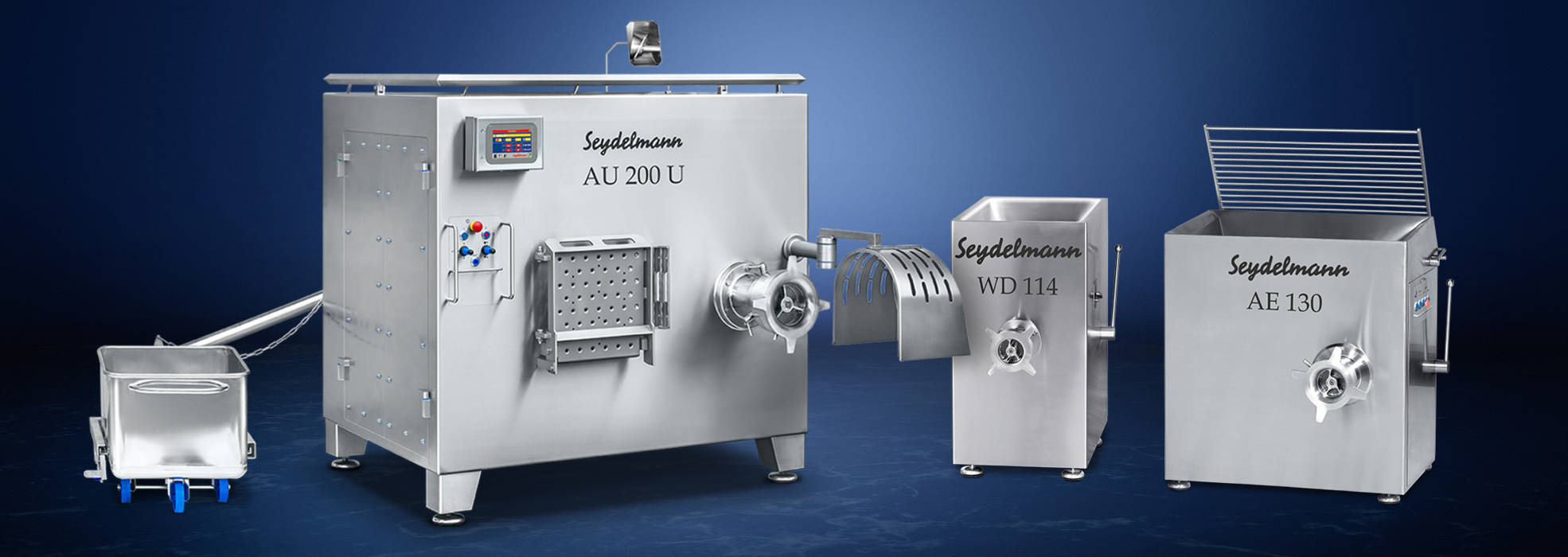

Seydelmann Grinders quickly and efficiently reduce fresh, tempered and frozen material.
Continuous Crushers

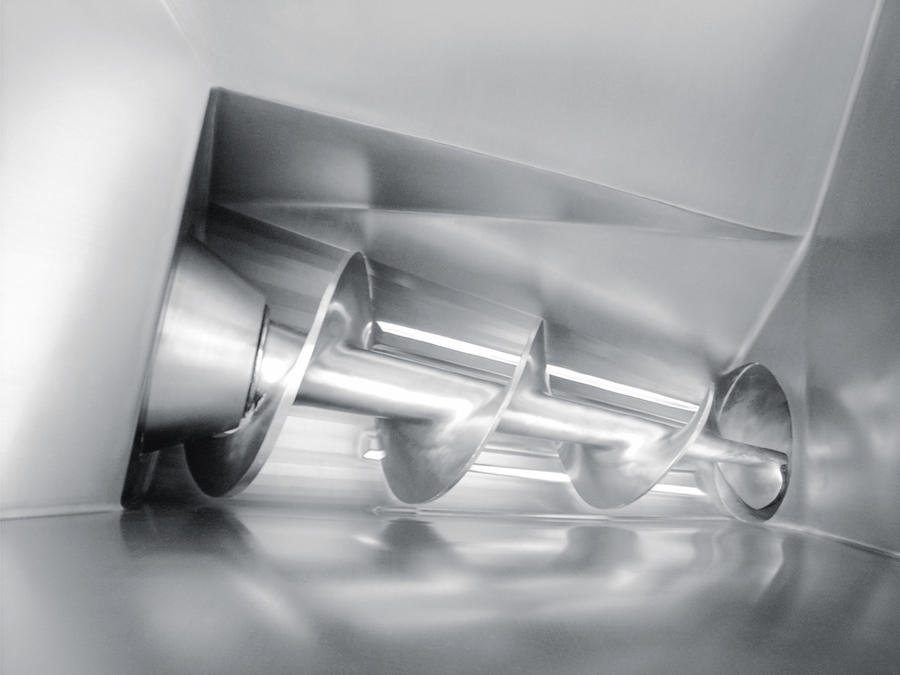

Automatic Grinders possess besides a powerful working worm, a conical feeding worm. Mixing Grinders are additionally equipped with a mixing unit to mix the product before reducing it. Universal Grinders crush product blocks, nuts, cocoa nibs, vegetables, spices, and medicinal plants, as well as frozen block material, with the huge feeding worm. Automatic Grinders K have a particularly designed hopper,as well as a feeding worm equipped with crushing teeth especially for cocoa butter and fat block processing. With Automatic Mixing Grinders, two working steps can be combined: mixing or pre-crushing and reducing. The steady breaking of whole, deep-frozen product blocks is guaranteed by the Blockware Grinders. Subsequently, the worm breaks the product blocks. Afterwards the product is transported into the cutting plate system for further reduction.
Available sizes
Grinders | Hole plate diameter | Max. hourly throughput |
Automatic Grinders |
114 - 130 mm |
1.5 t |
Mixing Grinders |
114 - 130 mm |
1 t |
Universal Grinders |
200 - 250 mm |
8 t |
Automatic Mixing Grinders |
130 mm |
1.5 t |
Blockware Grinders | 300 - 400 mm | 10 t |
Machine Request
If you are interested in a Seydelmann Grinder, please use the contact form below.
